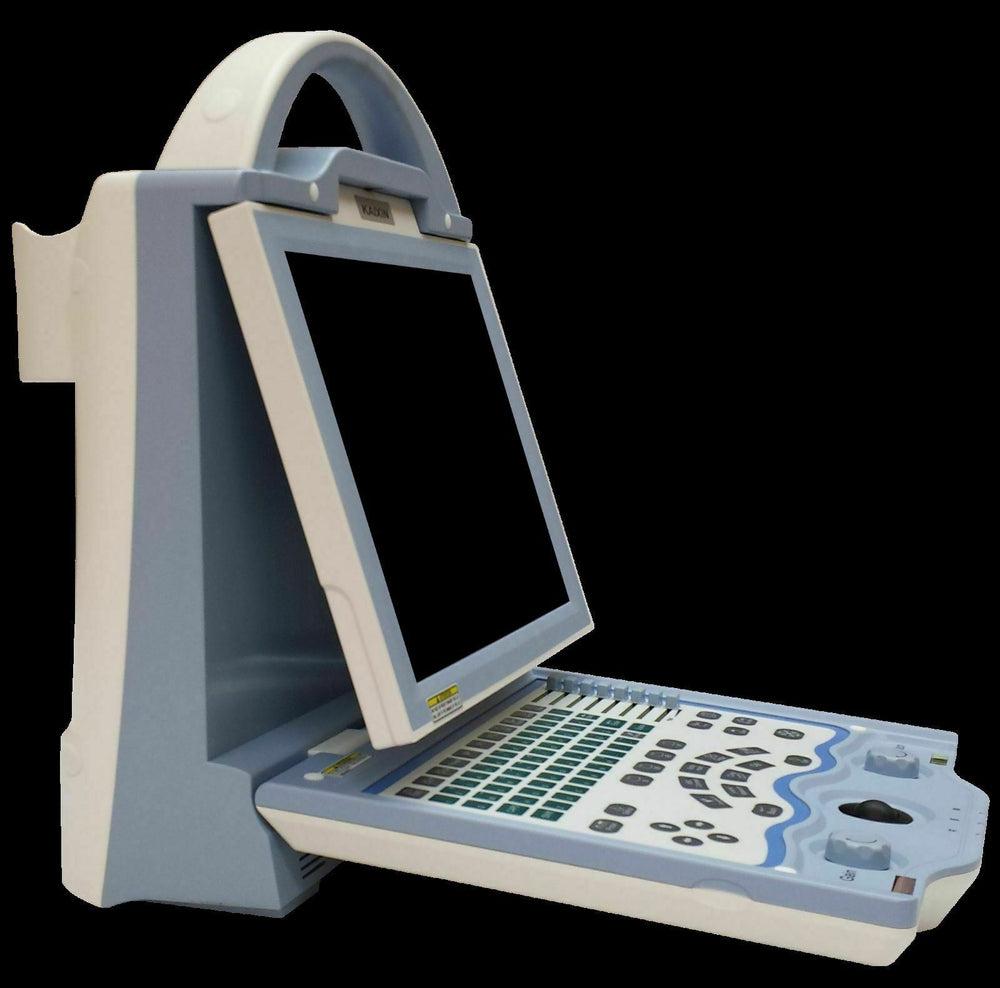

Veterinary Animal Ultrasound Scanner with Clear Image, Choice of Probes
Mobile LED Ultrasound With DICOM
Come with one probe of choice in price. Additional Probe $1000 (specify at checkout)
Probe Options:
4.0MHz Convex Rectal probe
6.5MHz Micro-Convex Probe for small animals
3.5MHz Linear Probe for eye muscle
3.5MHz Convex Probe
7.5MHz Linear Probe
Advantages
Lightweight at only10 lbs, including battery and probe. Similar ultrasounds are around 20 lbs.
Large 10.4" LED screen, with full screen image.
Two standard probe connectors
Only veterinary ultrasound with standard DICOM
Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.
Battery included, with 4 hours standard battery life.
LED monitor allows outside work in sunlight without a sun shade.
Anti-dust and anti-spalsh keyboard is convenient for outside conditions.
Affordable price, similar models sell for above $4,999.
70mm rectal probe lens and 70mm wide image. Wide image is good for seeing big follicles in large animals.
Specifications
10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle.
Adopt ARM7 embedded control system + FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
Two probe sockets, auto-identify different optional probe
Body marks 1.General 2. Bovine 3. Canine 4. Equine 5. Feline 6. Cardio 7. Swine, total 27 kinds body marks indicating probe position
Display mode：B、2B、4B 、B/M、M
Adjustable depth: 10 grades, max depth to 236mm
Gain：0～127dB
Contrast：27～90dB
Gray scale：256
8 steps intelligent TGC
8 kinds pseudo colors
Image storage: 4G hard disk to permanently store about 5000 frames images
Cine loop：256 frames
Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
the gravel software package with real-time position line measurement
Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
Cardio measurement：Depth, slope, heart rate, cycl；
OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth
Other measurement: pig’s meat factor measurement
OB report function
One-key store: concise and practical
One-key review：fast, practical image review function
One-key Print
One-key Transfer the current frozen image to net workstation to complete its image text report and print directly
Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station which is really complicated and waste time)
Unique One-key-light keyboard function for black room use
Display brightness adjustable
Dual TV output: PAL/NTSC, can connect video printer when necessary
Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz
Power supply adaptor output：DC12.8V 3.0A
Main unit weight：4.5kg（without accessories）
Main unit dimension：256×150×326mm（L×W×H)
Main basic configuration
Main unit
6.5MHz linear rectal probe
Power supply adaptor
Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
Reticle
Two probe sockets
DICOM 3.0
Optional
Battery charger
Trolley
Video printer (UP-897MD）
Ethernet Switch
KeeboMed, Inc Mount Prospect, IL USA
"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health.
International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional charges might be.
