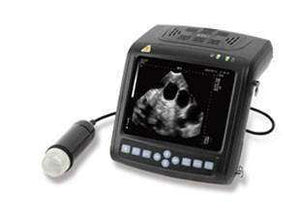

MSU-1

MSU-1 offers a completely portable handheld wrist ultrasound machine.  Recommended for pregnancy scanning of farm animals (goats, sheep, pigs and more).  Can be even used even for large animals (cattle, equine).

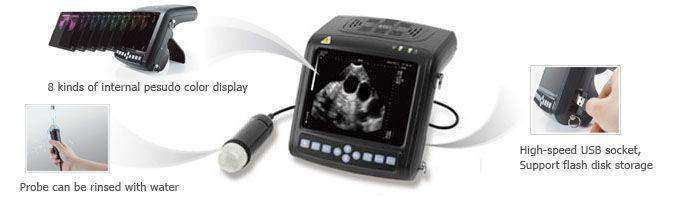

MSU-1 is fully digital wrist ultrasound scanner with mechanical sector probe. Offers pseudo color and a USB port for pictures saving.  Also can save videos.

Features of MSU-1:

Basic Information

• MSU-1 comes only with a Mechanical sector probe
• Lightweight--2 lbs, stored in leather carrying case
• USB port for saving the images to flash disk and then transfer to computer.
• One Rechargeable battery-- for 2 hours of continuous work time

• Technology: All-digital mechanical sector imaging technology, excellent image quality with high resolution and high penetration.
• Scanning methods: Mechanical sector scanning.
• Scanning technology: Real-time dynamic imaging, harmonic imaging.
• Probe: Mechanical sector probe.
• No. Of probe connectors: 1.
• Monitor: 5.7" high resolution non-interlaced SVGA display.
• Keyboard: Ergonomic keyboard.
• Gray scale: 256 levels.
• Display modes: B, B/B, B/M, M, or 4B.
• Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
• Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and *3.0.
• Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
• CINE loop: 256-frame.
• Zoom: Intelligent local zoom in real-time and frozen mode.
• Pictures storage and transfter: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
• Photo Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc. Frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
• Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
• Report: Obstetric report.
• Documentation: Full screen documentation, hospital name, Patient name, date/time.
• Power Supply: AC 100-240V~, 50-60Hz.
• Power consumption: ≤ 40VA.

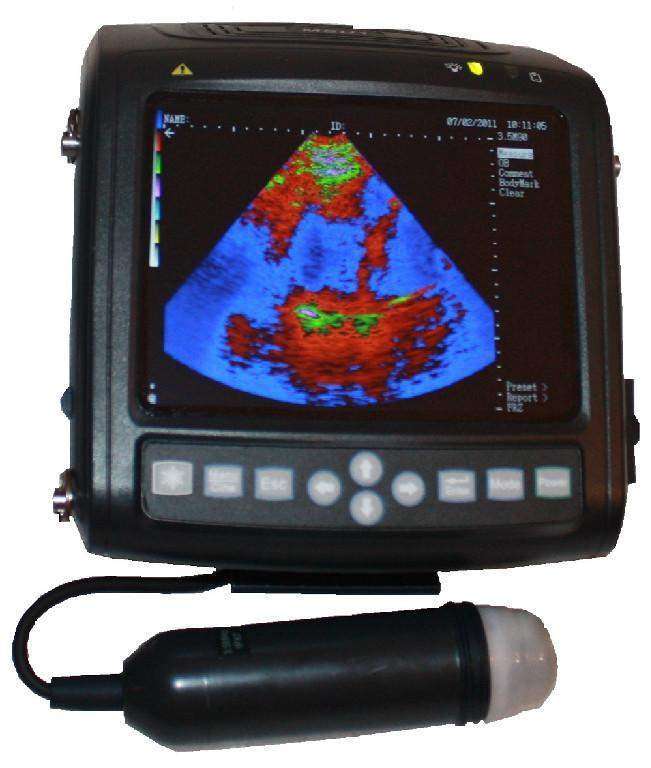

• Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable
• Application For reproduction of swine and goat

• MSU1 main unit
• 5.7" high resolution non-interlaced LCD display
• 1 probe connector
• 256-frame CINE loop
• 100-frame image storage
• USB disk port
• Measurement & calculation software packages
• Mechanical sector probe
• 4 veterinary body marks

• Ultrasound working station
• USB software with connection cable
• Ultrasound goggles
• Rechargeable power supply
• Rechargeable power supply in car
• Thermal printer (brand: Mitsubishi, model: P93W-S)
• Printer paper (cheap)
• Printer paper (expensive)
• Easy to operate and clean
