Chison Q6Vet

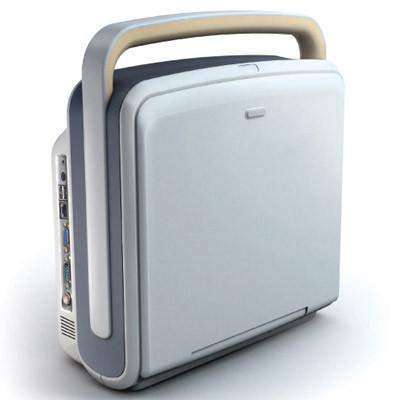

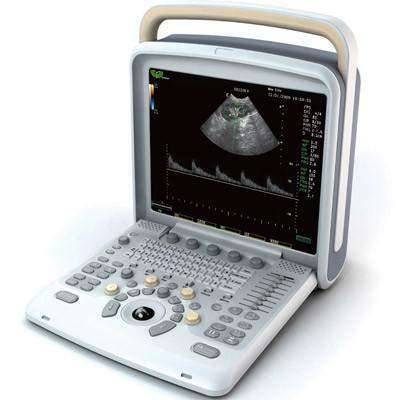

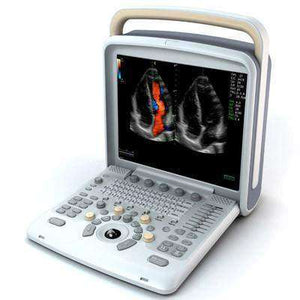

The Chison Q6Vet is a compact veterinary color Doppler ultrasound system. It offers superb image quality and complete functionality to provide full diagnostic capabilities at the point of care. Its lightweight package offers flexibility and mobility, especially meet the needs of veterinaries' transportation and out-door examinations.
A work-flow oriented user interface provides user-friendly operation with minimum soft key entry. Ergonomically design of the keyboard, 15 inches LCD large display, double probe connectors, make every scan COMFORTABLE and EASY which allow users to focus more on the patients. Some features of Chison Q6Vet are listed below.
Speckle Reduction Algorithm (SRA)- SRA is the technique that uses a variety of denoising algorithm to suppress speckle, smooth the B mode images, and make the faint edge more appearing.
Multiple Compound Imaging (MCI)- Increase the line density and improve the image quality, improve the contrast resolution and decrease the sidewall effect of the edge on the tissue and make the edge of the anatomical structure more distinguishable
Normal Multiple Compound Imaging- Tissue - the shadow created by the sound wave
Single beam-former- IMT Calculation Automatically traces the intima, automatically measure the thickness of the intima. Multi-Beam former Conventional color Doppler ultrasound system using single beamformer technology, thus using one beamformer to process one group of echo signals for imaging. While Chison Q6Vet using multi-beamformer technology, that is using multi beamformer to process one group of echo signal which can greatly improve the speed of imaging processing, especially enhance CFM frame rate.

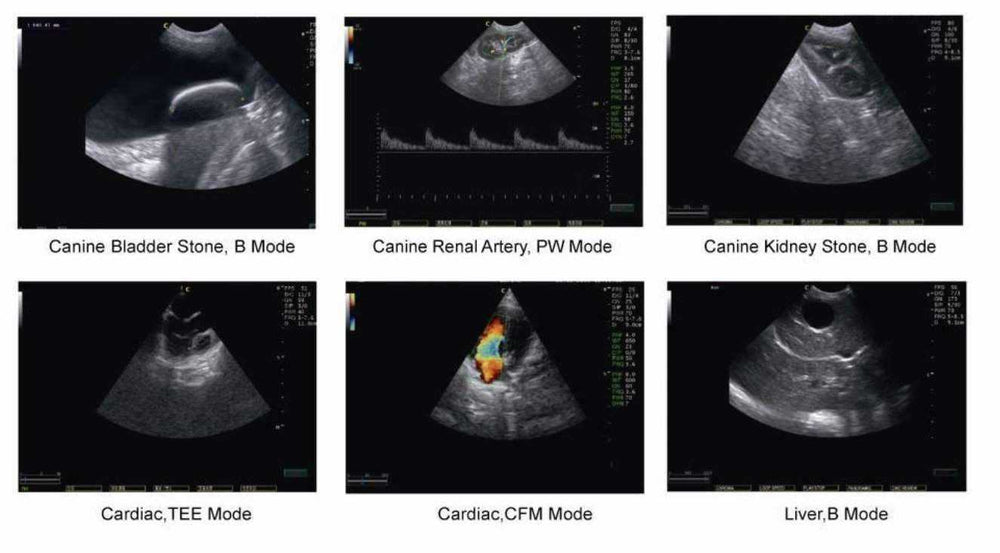

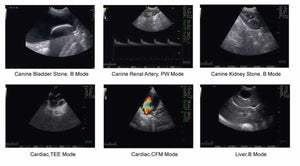

Imaging modes
- B, 2B, 4B, B/M
- CFM, B/BC
- PW, HPRF, CW
- PD,Directional PD
- Instant Triplex, Duplex
- TrapezoidaI
- Panoramic
- TSS
- Free-hand 3D (optional)*
- Chroma B/M/PW/CW
Probes
- Convex, EIectronic Linear, Electronic Micro-Convex, Phased Array
- Wideband (broadband) Multi-frequency
Image Processing Technology
- Double Phase Digital Beam Forming (DPDBF)
- THI on all probes
- Speckle Reduction Algorithm (SRA)
- Multiple Compound Imaging (MCI)
Measurement & Report packages
- Canine: GS, GRL, HD, BD
- Feline: HD, BD
- Equine: GS
- Bovine: BPD,CRL,Trunk Diameter
- Ovine: BPD,CRL,Trunk Diameter
Professional Clinical Applications
- Abdominal
- Cardiac
- Vascular and Small parts
- Reproduction
Standard configuration
- Main unit
- 15"LCD
- 2 probe connectors
- large-capacity memory
- 2 USB ports
- Video out, TV out, LAN port, VGA out
Optional
- 3.5MHz Convex probe
- 7.5MHz Linear probe
- 6.0MHz Micro-convex probe
- 3.0MHz Phased Array probe
- 6.0MHz Phased Array probe
- 5.0MHz TEE probe
- Extended Cardiac Package: ECG, Free Steering M, Color M, TDl, lMT, Advanced Cardiac
- Measurement Software
- Biopsy kit is available(probe dependent)
- Video printer, PC printer
- Trolley
- DICOM3.0
