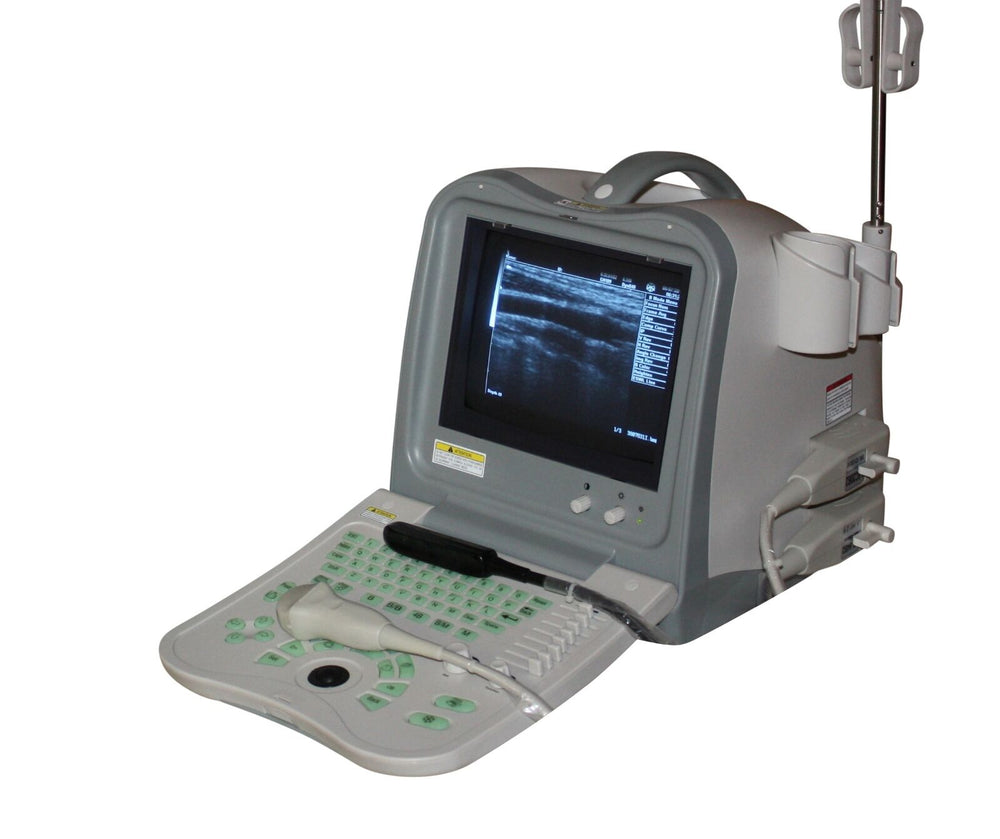

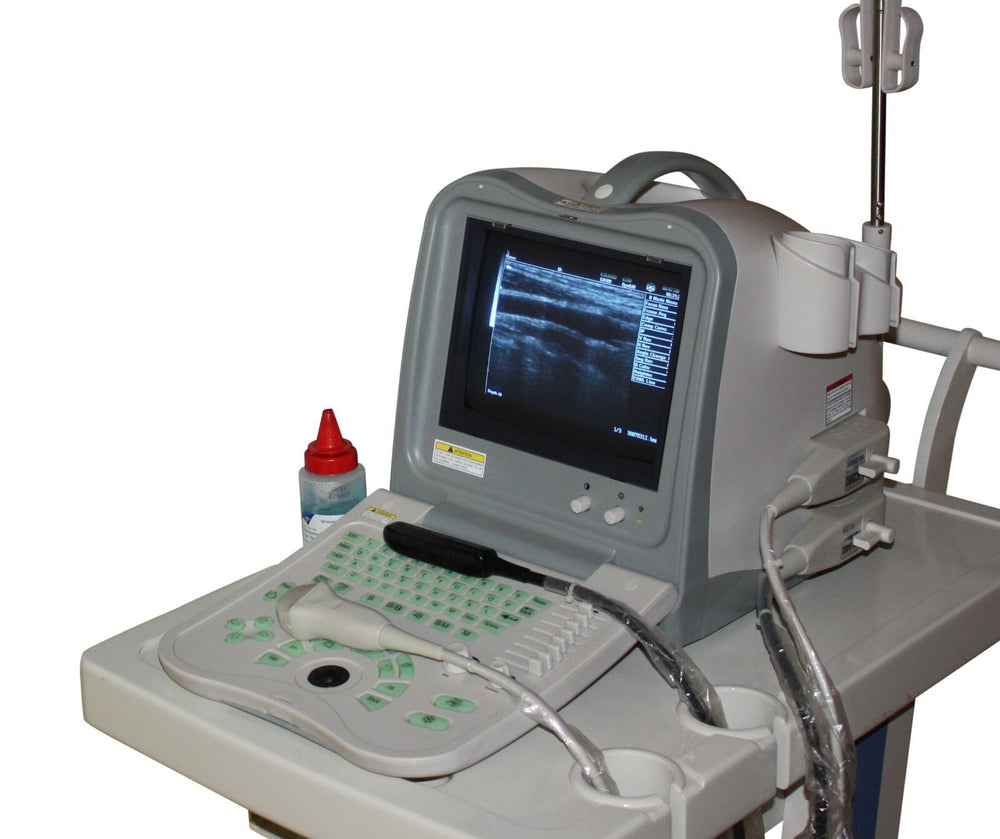

Affordable Veterinary Digital Ultrasound Scanner & Rectal Probe & Two USB Ports
- Good image quality
- Digital
- High frequency probes
- Two USB Ports
- Laser printer can be used. (optional)
|
Scanning Mode |
B, B/B, 4B, B/M (Up/Down, Left/Right ) |
|
Focusing |
Electronic focusing + Acoustical lens focusing, single focus and multiple focus are provided. |
|
Scanning technology |
Digital beam forming, dynamic Aperture, DRF,RDF, RDA, THI |
|
Magnification |
Stepless intelligent zoom,local zoom |
|
Detectable Depth |
≥240mm |
|
Receiving channel |
≥256 |
|
Gain control |
1 Total TGC +7 Slides TGC control |
|
Cine loop |
256 frames |
|
Image storage |
Built-in memory, storage USB disk |
|
Probe frequency |
3 steps ulti-frequency, 2.5MHz - 10.0MHz (Depend on the probe types) |
|
Image process |
Dynamic range change and logarithm compression, Time/ Spatial filtration, Scanning speed Control, Control of line density and scanning angle/ width, Graphic vertical/ horizontal /black-white flip, Y adjustment, window curve control, edge enhancement, frame correlation, gray curve control, STC curve TGC, DSC change and repeat processing. |
|
Additional functions |
Software update function, screen protection Vedio out: PAL-D,SVGA, |
|
Basic Measurements |
B-mode: distance, area by ellipse and trace method, distance stenosis percentage, distance ratio, area ratio, volume, angle
M-mode:heart rate, time, distance and velocity |
|
Reproduction Software |
BOVINE: HD, CRL, TD. EQUINE:SD,EOD, EOC, AD CANINE: BD,BPD,CRL, GS,HD OVINE:BPD, CRL, OSL |
|
Standard |
|
Main unit with 10'' monitor , 2 USB ports One Rectal probe 2 probe connector |
|
|
Option |
5.0MHz rectal Probe, 7.5MHz linear probe, 3.5MHz convex probe, Trolley, B/W video printer. |
||
KeeboMed, Inc Mount Prospect, IL USA
"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Authorized purchasers only. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item."
If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health.
We accept payment by any of the following methods:
PayPal
Please pay as soon as possible after winning an auction, as that will allow us to post your item to you sooner!
We offer FREE shipping on all orders in the USA!
Your order will be dispatched within 1 working day of receiving payment (Monday-Friday) and you should expect to receive it as soon as possi.
In the very unlikely event that your item is lost or damaged during post, then WE are responsible and will issue either a full refund or replacement.
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one, be it similar or not.
You can return a product for up to 14 days from the date you purchased it.
Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt.
