On Sale

KEEBOTOUCH 30V

Sale price

Regular price $6,999.00
( / )

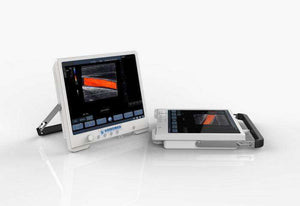

INTRODUCING THE KEEBOTOUCH 30V COLOR DOPPLER ULTRASOUND PW MODE

The newest Touch screen Ultrasound on the market, the 30V is equipped with many useful functions including: information management, body marks, OB tables and specialized measurement packages.

30V is good for small or mixed animal practices and is exceptional for farm use with Bovine and Equine Classifications.

The one-touch feature allows for: streamlined exams, quick diagnosis and decisive action in critical situations.

Fast and with very little downtime, the system is ready to use in 40 seconds.  This simplifies the process and increases productivity.

This powerful color doppler ultrasound is affordable making it an indispensable part of your practice.

STANDARD:

  • Main Unit—KeeboTouch 30V
  • Rectal Liner probe
  • 110-240V AC Power Cord
  • Basic User’s Guide
  • 12 months warranty (both for machine and probe) under PRO-SUPPORT

OPTIONAL:

  • DICOM 3.0 support
  • Supported Printer and Video Printer
  • Linear Abdominal Probe
  • Micro-Convex Probe
  • Convex Probe
  • Additional 12 months warranty for ultrasound unit under PRO-SUPPORT

FEATURES:

  • 15” LCD Touchscreen Monitor
  • Gray Scale—256
  • B&W Mode— B, M, 2B, B/M, 4B, C, PW, POWER DIR-POWER, THI
  • Transducer Frequency 2-11Mhz
  • Digital Technology
  • Wide Angle imaging
  • Panoramic Imaging/focusing technology
  • Rolling M Technology
  • Frequency Composite
  • Real-time Dynamic Aperture
  • Tissue Harmonic Imaging
  • Scanning Depth—220 mm
  • Image enhancement presets for specific applications
  • Auto-Export--save and/or transfer images taken during exams

Technical Specification

  • Mode: B,M,2B,B/M,4B,C,PW, Power,DirPower,THI
  • Gray sacle: 256
  • Display: 15”LCD monitor
  • Touchscreen: Full Touchscreen
  • Transducer frequency: 2-11Mhz
  • Digital technology: Wide-angle imaging
  • Panoramic focusing technology
  • Compatible with high and low speed blood
  • Rolling M technology
  • Panoramic imaging
  • Frequency composite
  • Space compound
  • Real-time Dynamic Aperture
  • Tissue Harmonic Imaging
  • Scanning depth: 220mm

Imaging Processing

  • Pre-processing: Cloud processing technology
  • Fine blood flow imaging ,high sensitive
  • 8-segment TGC
  • Gain
  • Dynamic range
  • Persisitence
  • M Soften
  • Noise suppression
  • Post-processing: Image enhancement
  • Gray-scale Map
  • Pseudo Color Map
  • Tissue Specific Imaging
  • Interface to turn 180°
  • Left/right reverse
  • Up/down reverse
  • Functions

  • Smart touch-screen design Supported
  • Cine-loop: 341 frame cine loop memory
  • USB ports: 2
  • Zoom: Pan zoom for the active image
  • Amplification: 10 times
  • THI: Tissue Harmonic Imaging
  • Qopt: One-key Optimize
  • Multi language: Supported
  • DICOM: DICOM3.0
  • Print: Report print for text & image

Measurement & Calculations

  • B mode: Distance, angle, area, volume, trace length,
  • distance ratio, area ratio, histogram
  • M mode: Distance, time, slope, Heart Rate
  • Software packages: Abdomen, obstetric, Gynecology, Cadiac, Neural and Small Parts

Others

  • Transducer connector: 3 active transducer connector ports
  • Peripheral ports: Video,2 USB ports,1 networking port,1 power inlet
  • Power supply: 100-240V~ 50/60Hz <100VA
  • Dimensions(main unit): 358mm(W)*366mm(L)*65mm(H)
  • Packing dimensions : 415mm(W)*435mm(L)*140mm(H)
  • Net weight: About 3.0kg
  • Gross weight: About 4.5kg

Multi-frequency probes

  • 3.5 MHz convex probe(R60)
    • Application: Abdomen, GYN, OB
  • 7.5 MHz linear probe(L40)
    • Application: Vascular, Small Parts
  • 6.5 MHz transvaginal probe(R13)
    • Application: Vaginal
  • 6.5 MHz micro-convex probe(R15)
    • Application: Infant Cardiac, Infant Abdomen
  • 5.0 MHz micro-convex probe(R20)
    • Application: Infant Cardiac, Infant Abdomen

Standard Configuration:

  • Q3 color main unit
  • 15”LCD with high resolution: 1024*768
  • Touchscreen
  • Two USB ports
  • One s-video out port
  • One networking port
  • One power inlet
  • One convex probe(3.5M R60)
  • Three transducer connectors
  • Plenty of measurement&calculation software packages
  • 18 months warranty since ex-factory date for main unit
  • 12 months warranty since ex-factory date for probes

Optional

  • Probes:
    • 3.5 MHz convex probe(R60)
    • 7.5 MHz linear probe(L40)
    • 6.5 MHz transvaginal/transrectal probe(R13)
    • 5.0 MHz micro-convex probe(R20)
    • 6.5 MHz micro-convex probe(R15)
  • Power supply: Built-in Lithium battery power supply system
